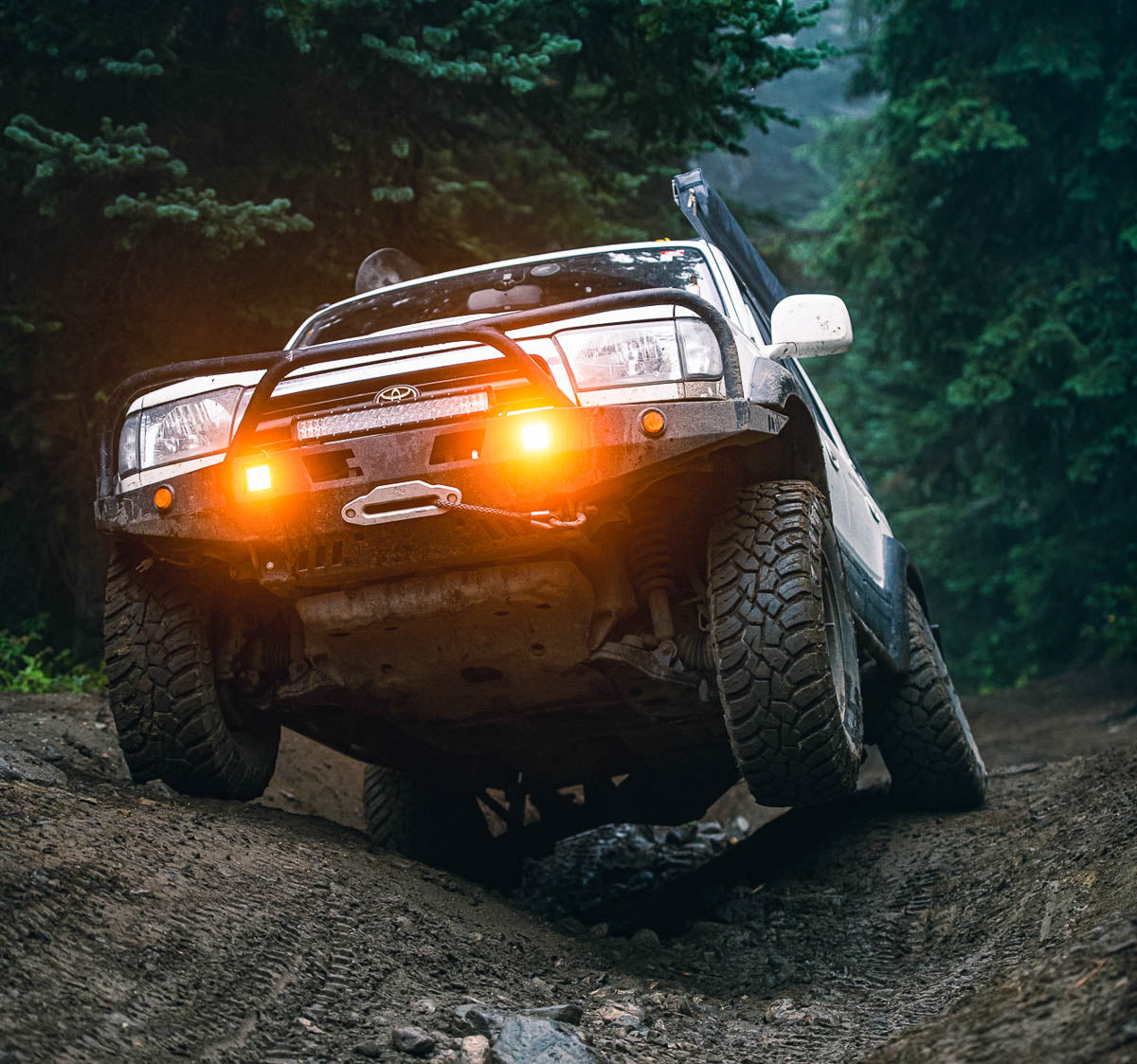

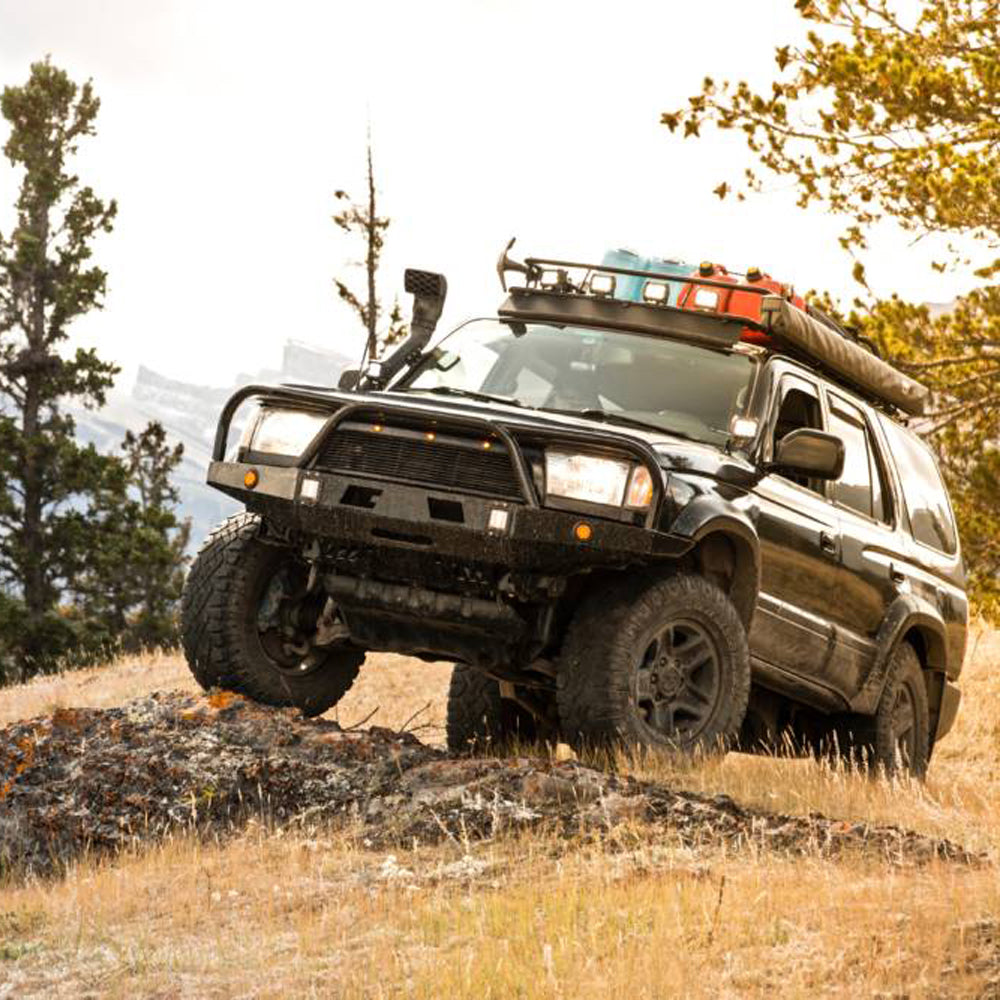

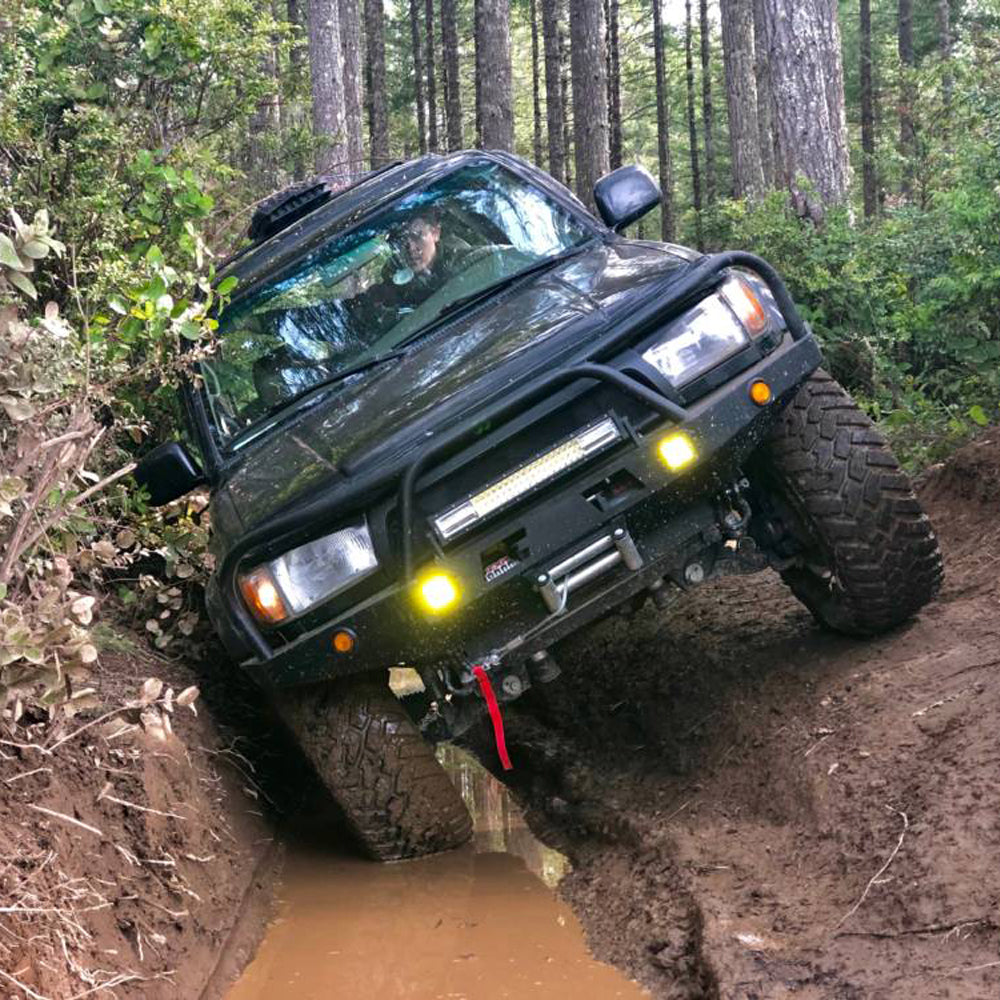

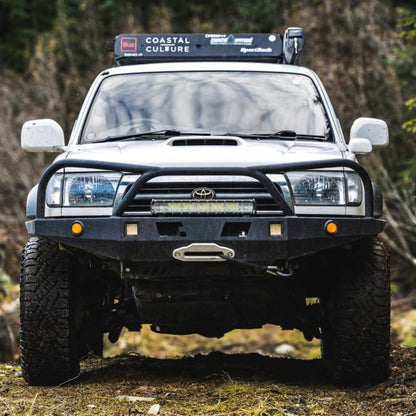

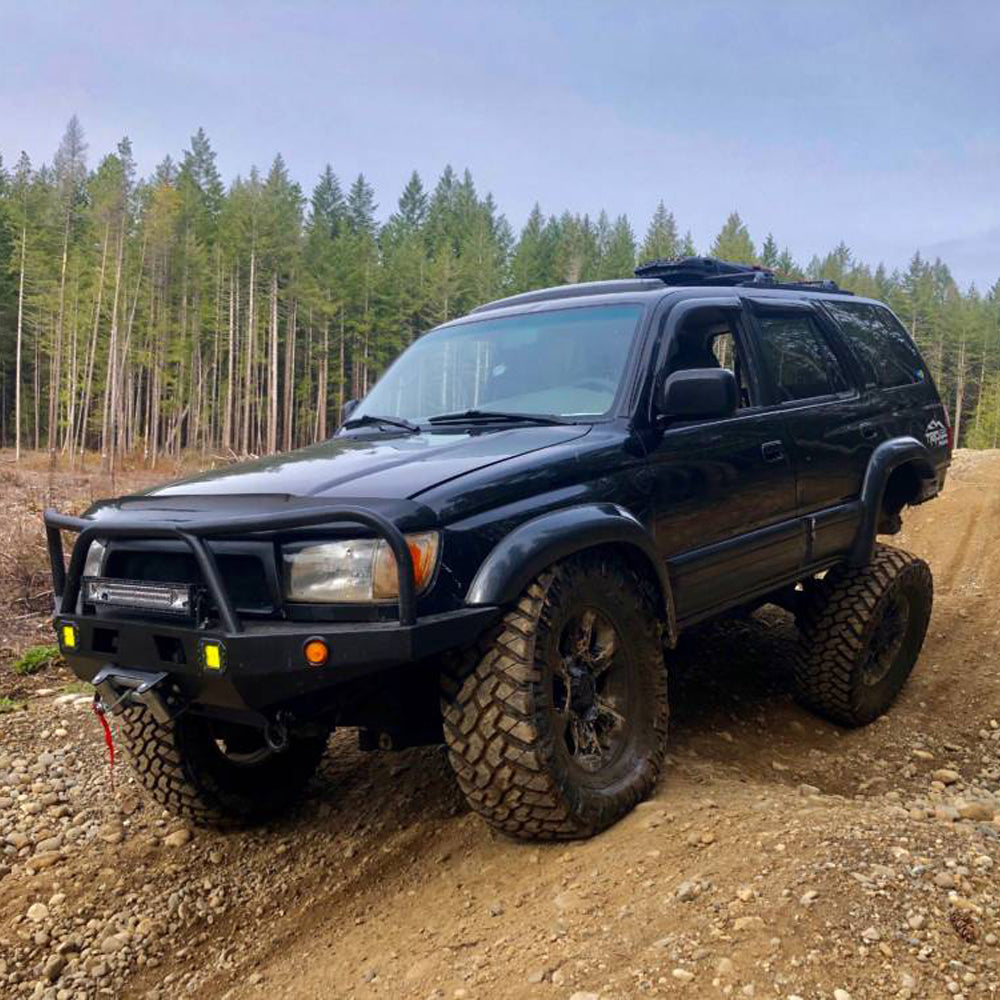

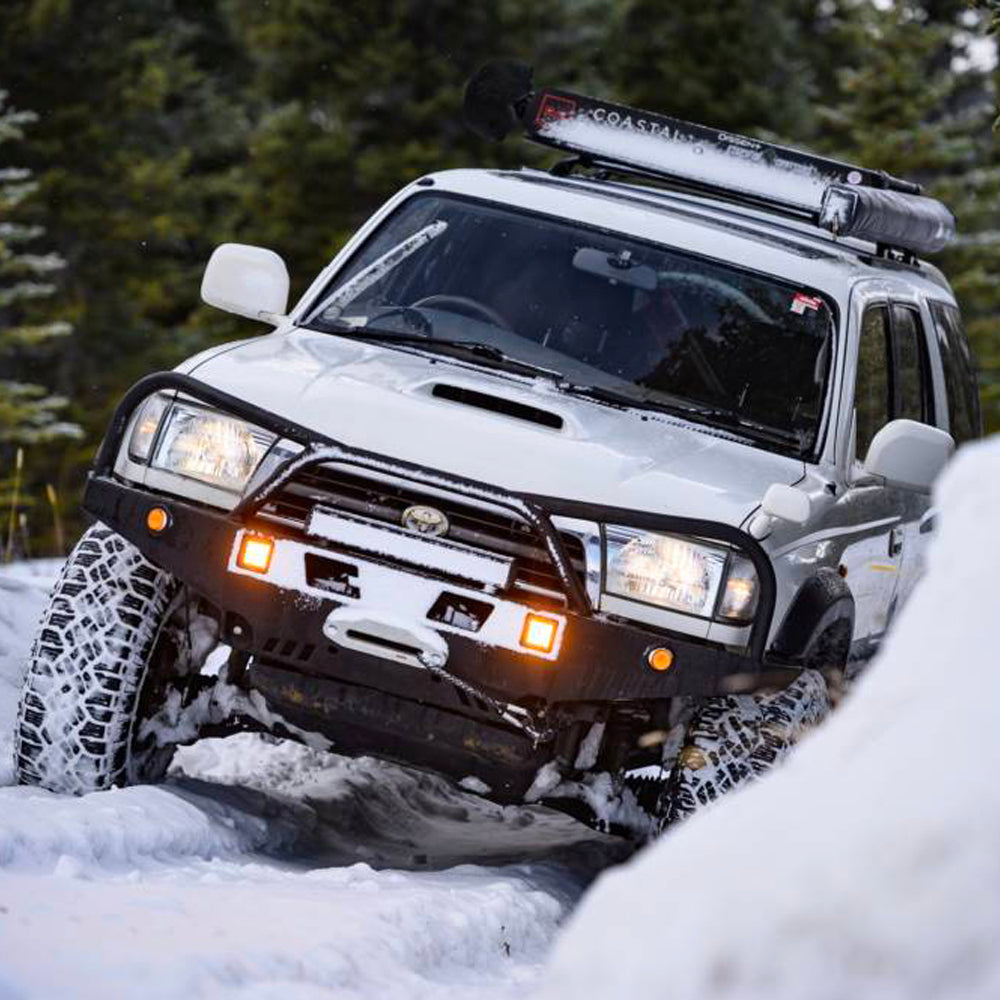

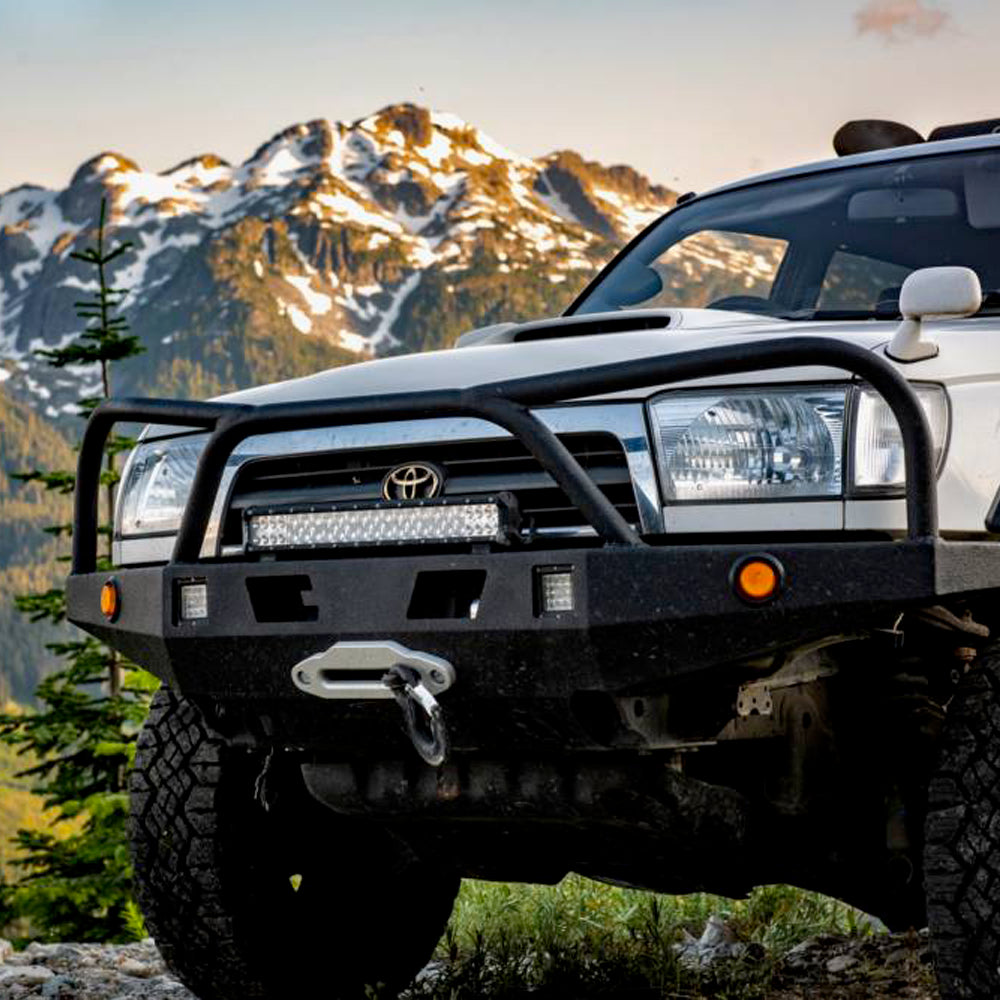

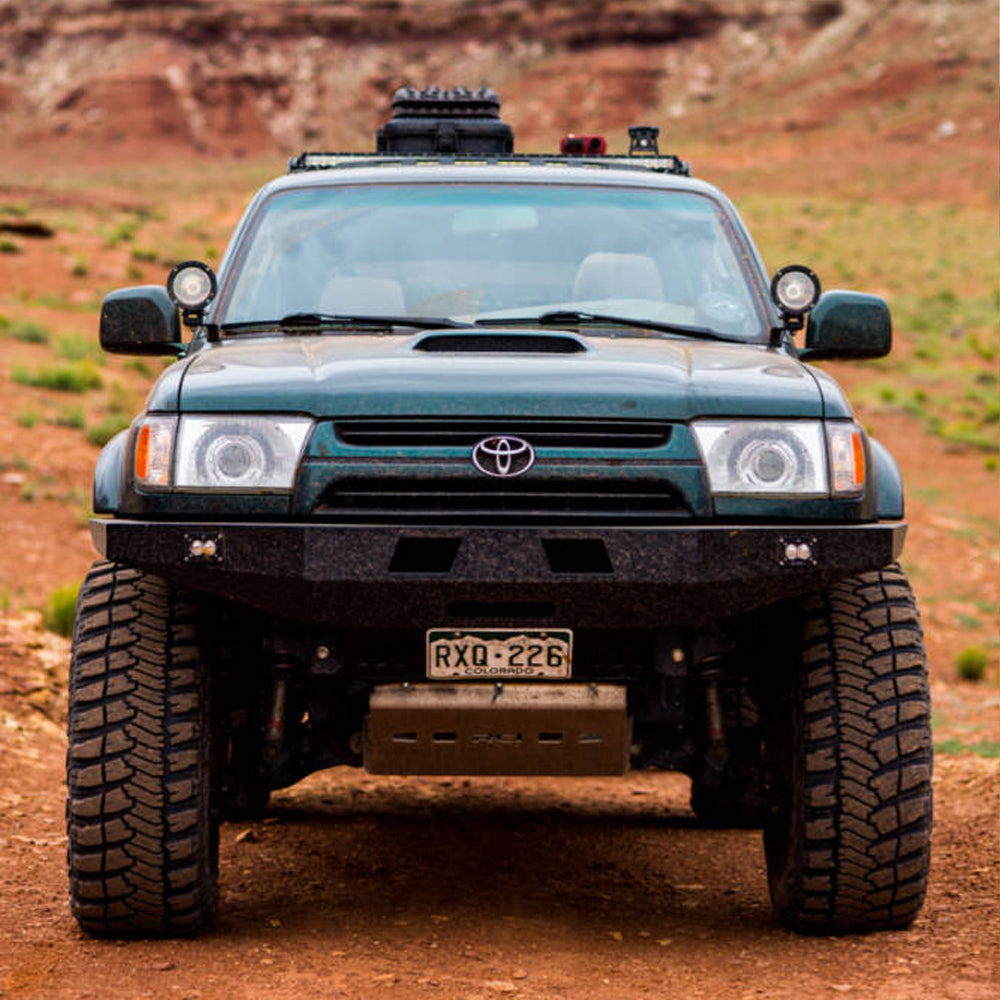

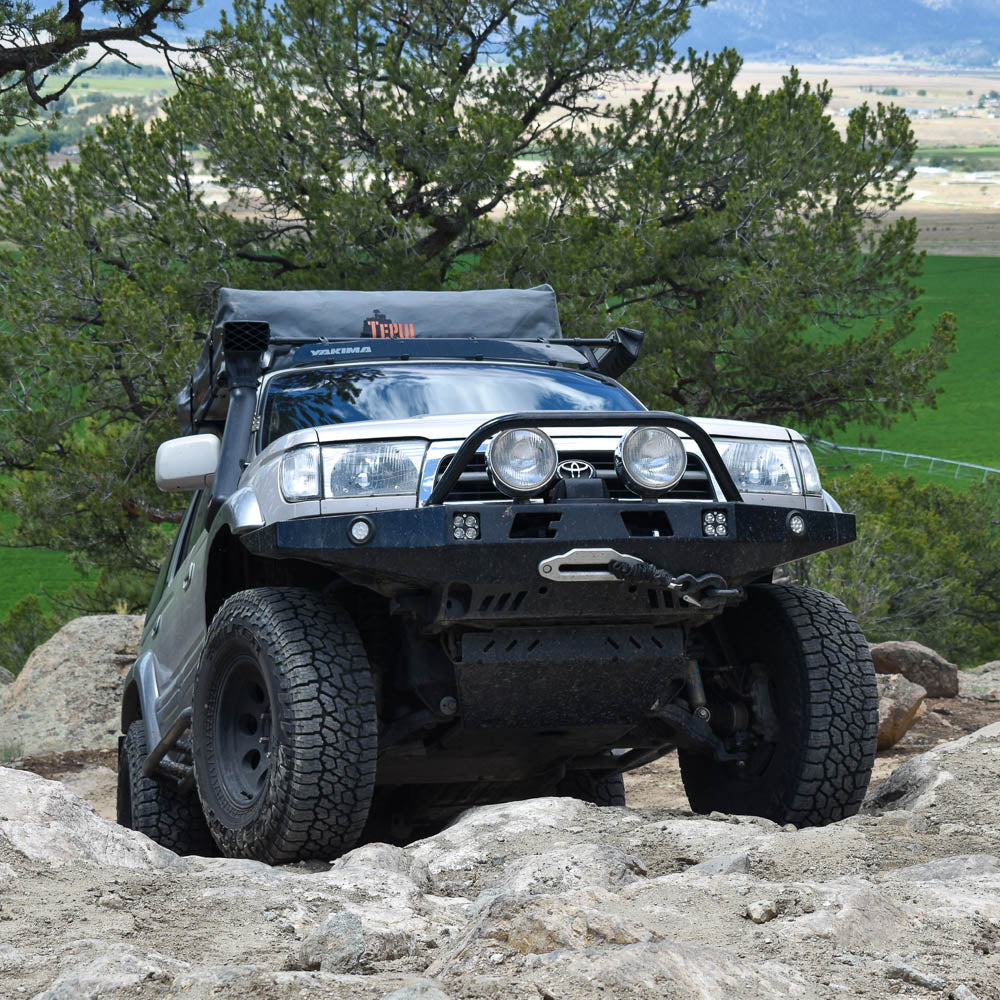

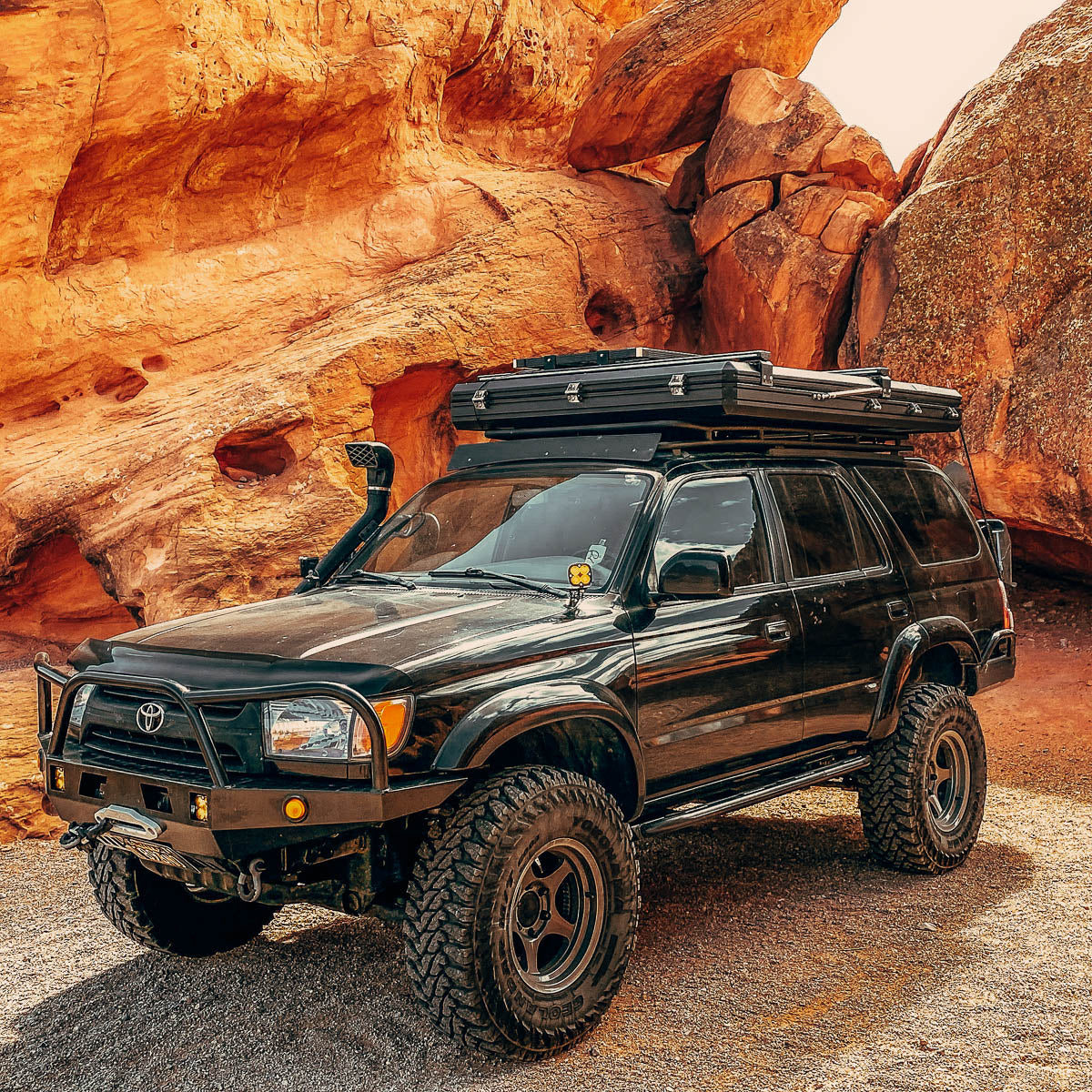

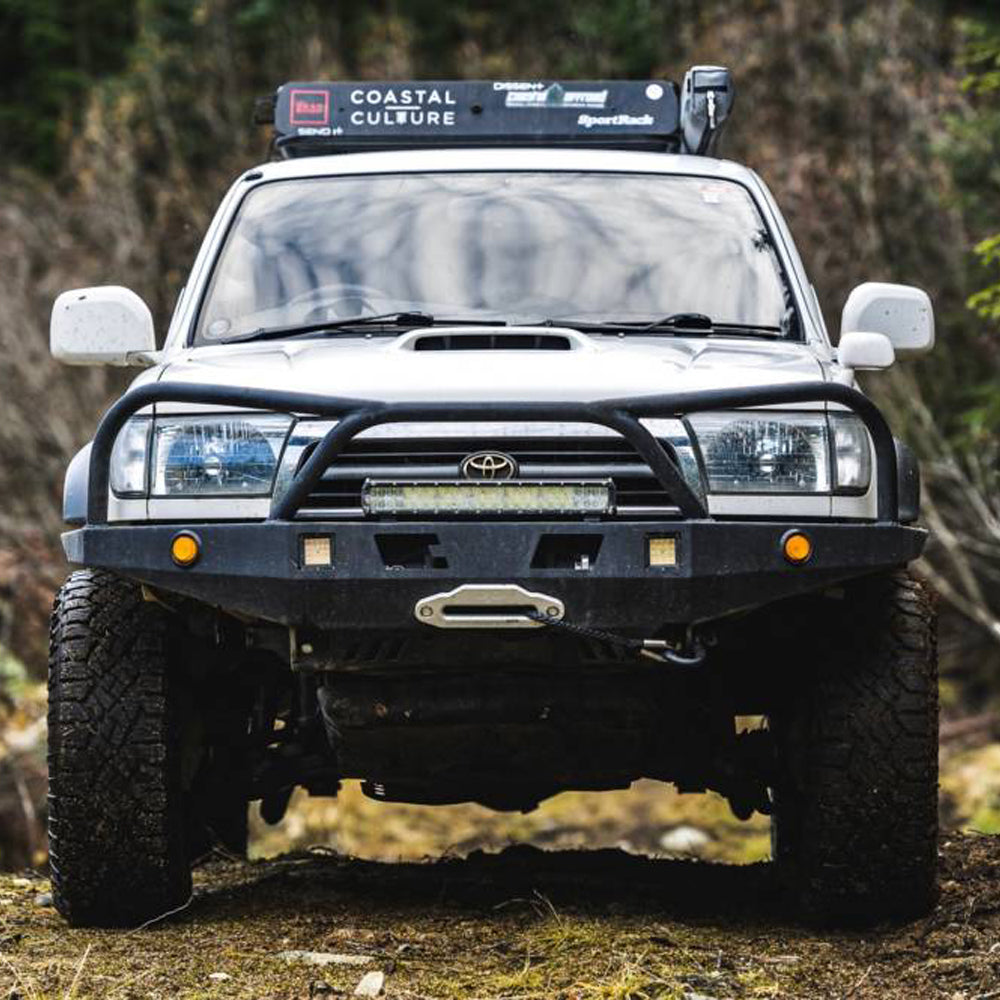

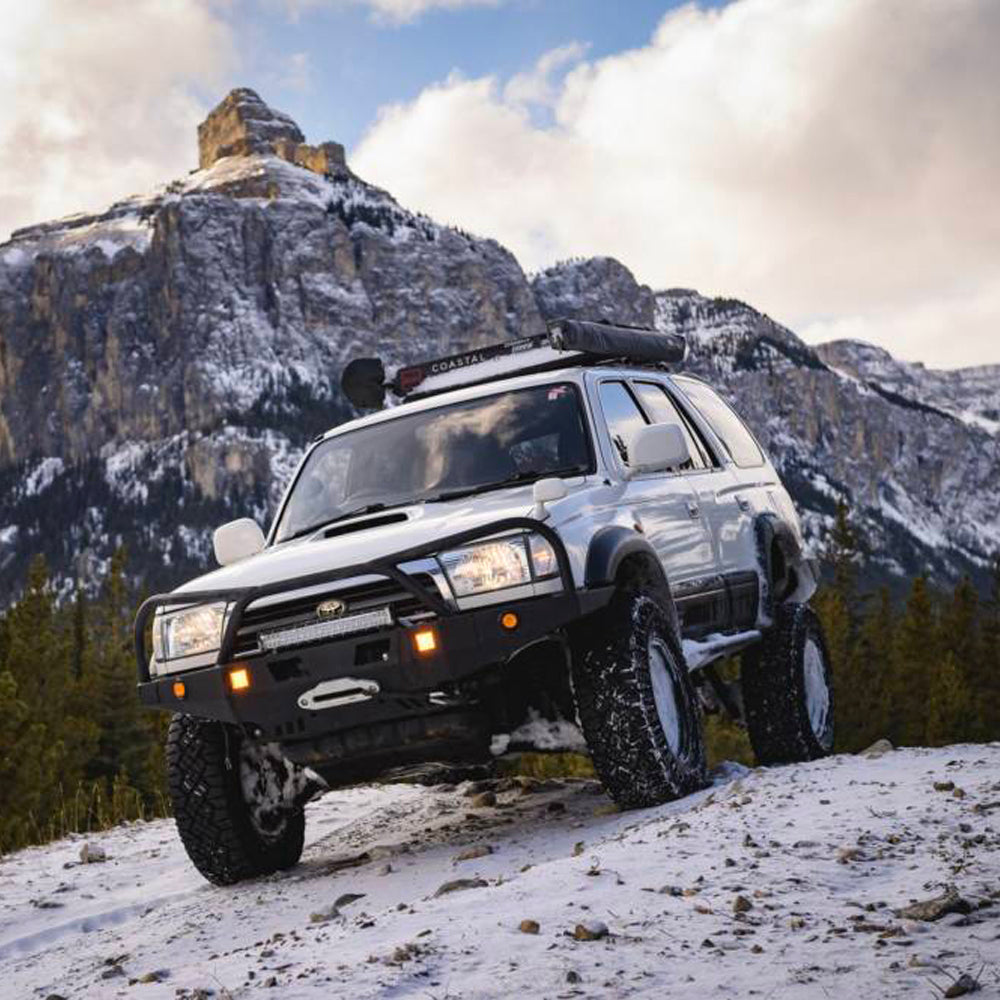

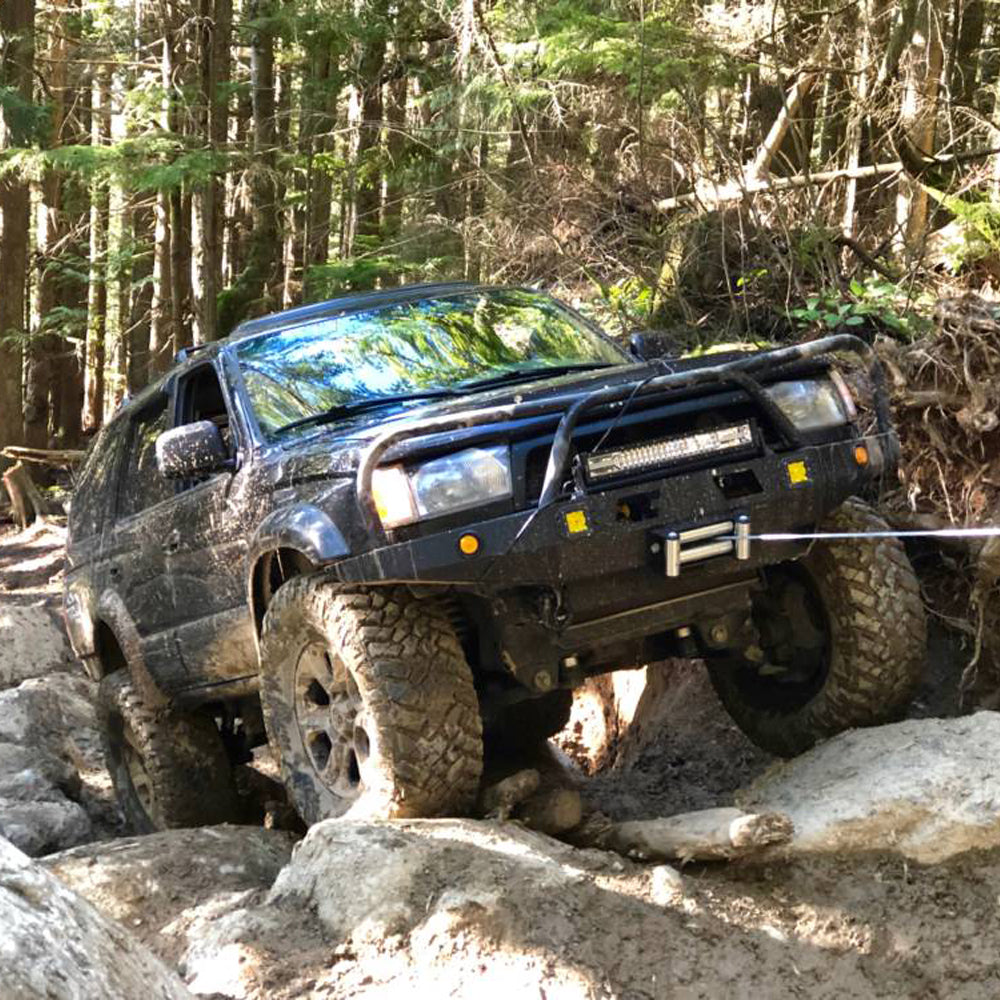

Introducing the Coastal Offroad Closed Top DIY Weld-Together Winch Bumper Kit for the 3rd Generation Toyota Hilux Surf & 4Runner. This bumper is based on our original open-top winch bumper that is the tightest fitting and highest clearance bumper on the market. This bumper is different in that the winch sits entirely enclosed within the bumper, thus eliminating the need to trim your grill to install a winch. We have managed to do this while still keeping a very low profile bumper that only protrudes 100mm / 4" from the centre of the grill. This high clearance design allows you to forget about approach angles and substantially improves the offroad capability of your 4Runner! It offers excellent protection from trail obstacles, animal strikes and inattentive drivers and has been kept to a weight of 40kg / 89lbs through careful design work.

The main section of this bumper is CNC-bent out of a single piece of  3/16" P&O Steel. This greatly reduces the amount of welding and grinding required by you and makes for a cleaner finished product. If you are paying to have the bumper assembled by a welding shop, this significantly lowers the cost.

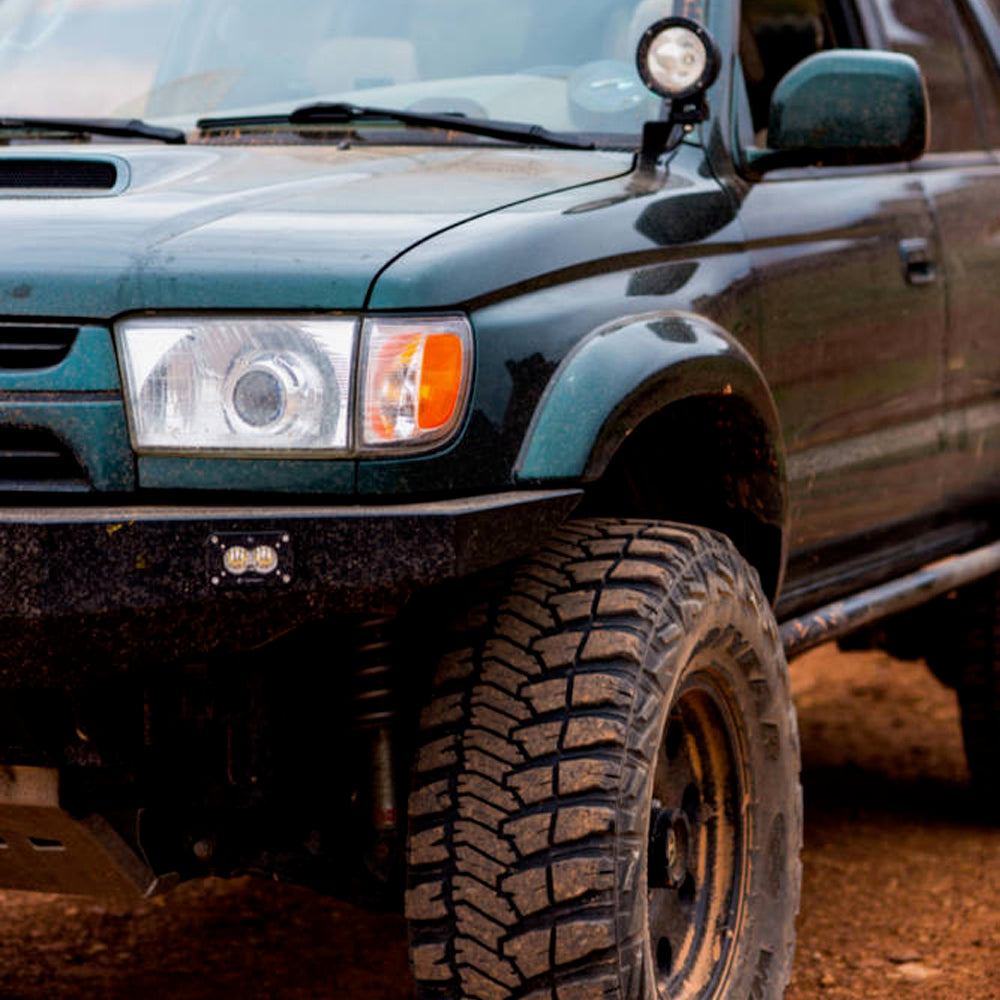

The profile of this bumper has been designed with maximum ground clearance and approach angles put first. The bumper sits as high and tight to the front of the vehicle as possible, while the angled lower faces will smoothly slide over obstacles and ensure you do not get hung up on the trail. The side wings of this bumper wrap around to the front wheel wells and tie directly into the main frame mounting plates for true offroad protection. These side wings will take a serious hit without flexing or deflecting into the vehicle body. We know that most 4x4 owners want to run oversized tires and more aggressive wheel offsets. This can create interference issues with the stock front bumper. We have thought ahead and specifically designed these bumper side wings to easily clear 35" tires.

We finished this bumper off with integrated light buckets for surface mount LED pod lights, an integrated winch mount to accept all standard 8-12k lb winches with removable solenoids, and heavy duty 9/16" recovery points that are placed directly in line with the vehicle frame to eliminate any leveraging effects. These recovery points are formed by laser cut steel plates that pass through the bumper shell and tie directly into the frame as part of the bumper's main mounting brackets. The recovery points then get welded to the inside and outside of the bumper shell. These factors all combine to form recovery points that minimise stress on your 4Runner frame and are essentially indestructible! What could make this bumper even better? The low profile design has resulted in very reasonable weights of 40kg / 89lbs. Considering that this bumper replaces your factory bumper and associated components, the resulting weight increase to your vehicle is minimal. This minimizes added stress on your vehicle, maintains precious payload capacity, and allows you to keep your factory suspension if desired.

Please note this product is manufactured on demand, so please allow 3-10 business days for items to be made and sent. Once your order has been processed with the manufacturer, the kit is non-refundable so please choose carefully.

• DIY Weld-together kit - This bumper arrives as precision CNC-laser cut pieces that you then weld together (detailed assembly instructions included)

• CNC-bent plates greatly reduces amount of welding and grinding required by you and makes for a cleaner finished product

• Low profile design is engineered to provide maximum ground clearance and complement the factory body lines - this bumper protrudes less than 100mm / 4" from the centre of the grill!

• Heavy duty 3/16" plate steel construction for maximum offroad strength and durability

• Bolts directly to frame using a total of 8 mounting points

• Protected winch mount fits all standard 8000-12,000lb winches with removable solenoids

• Integrated 9/16" thick clevis mounts allow the use of 3/4" D-Rings and pull directly off of the frame for confident recoveries of heavily loaded vehicles

• Two integrated LED pod mounts – included slotted mounting tabs give tons of adjustment to fit a variety of lights

• Integrated license plate mount

• Integrated turn signal cut outs

• Optional heavy duty grill and headlight tubing for added protection

*Please note that due to all the different options available, displayed bumpers may differ slightly from those received spending on options selected.
